LMF/LMK/LMH vexillum lineari motu flanged afferentem

Hoc productum est vexillum linearis motum LABIUM ferens. Eius unicum consilium flange institutionem stabilitatem et flexibilitatem auget. Ad varias condiciones operandi apta est, ut instrumenta electronica, machinamenta cibi, machinamenta sarcinaria, machinamenta textilia, machinamenta excudendi et instrumenta machinae CNC.
LABIUM rotundum, LABIUM quadratum et duo latera LABIUM incisum praesto sunt; resina teneretur et summus temperatus resistens teneretur sunt available.

A Quote

PREV：LMF…L/LMK…L/LMH…L motus linearis biplicatus duplicatus portans NEXT：KH premens rubi gerens, annulum exteriorem impressisse linearem gerentem

Product praesentationis
Occasum
description de materia
Nobis loquere

Product Features

1 Sub condicione olei liberorum diu operari potest.

2 Aptius est celeritati gravis et magno onere operandi condiciones, cum bono labore resistente et maxime humilis frictio.

3 Apta condicionibus in quibus cinematographicum oleum difficile est formare, ut reciprocum, rotatum et motibus intercisis.

4 Erugo et oxidatio repugnans.

5 Donec vitae suscipit libero.

Quid eligere oleum-liberi gestus

Redigendum costs vestibulum

Olei fabrica copia non est opus, foramen oleum vel oleum sulcus processus, qui magnos sumptus fabricandi minuere potest.

Redigendum pretia

Ea signanter usum oleum lubricationis minuit, armorum sustentationem minuit; abscondita pericula vitat et causatur ex copia olei insufficienti, efficaciter reducendo pretia.

Reducere consilium tempus

Consilium oleum-liberum simplificat productum structuram et consilium tempus servat. Nos sumus professional ODM Suppliers LMF/LMK/LMH vexillum lineari motu flanged afferentem

Conducere ad environmental praesidium

Nullum oleum vastum redivivus requiritur, quod etiam ad tutelam environmental utilis est.

Applicationem agri

Caliditase

·Ferro plant

·fornax liquescens

·siccatio armorum

·Coquere in clibano

·Estus moderatoris

Raincoat

·Dam porta

·Aquae sentinam

·Fluidus structuram switch

· Suboles structurae

· Navale apparatum ac machinam limum

Industria chemica

·Officinas chemica

· apparatum electrōlatum

·Wastewater curatio apparatu

·Minguis machinis

·Oleum et chemicum apparatum expolitio

Energy

·Ventorum industria

·Virtas nova

Bateau

·Grue de pont

·Ancre

·Couvercle de trappe

·Bras de gouvernail

·Machines de levage et équipements d'anneaux de levage

Fabrication automobile

·Moule d'estampage

·Structure de soudure

·Ligne de peinture et de séchage

· Bande transporteuse métallique

·Des machines-outils

Industrie lourde

·Machines d'usine de tuyaux en acier

·Usines de pneus et de papier

·Centrale électrique

·Bouton de connexion des machines d'injection de moules

Constructio, fodienda, loading

·Mixers, molares, pulverizers

·machina constructio

·machinae Mining

·Vestibulum coniungens gestus

Pontes et cancellos

·Pons subsidia

·Tigna, pontes, pontes suspensio

·Reactores cum industria nuclei coniunctum

· Vapor genitor

Type	Adscendens exemplum	Genus Flange	Longitudo
Latin Flanged Type		LMF	Unius
		LMK	Unius
		LMH	Unius
Duplex-Lata Flanged Type		LMF…L	Duplex
		LMK…L	Duplex
		LMH…L	Duplex
Gubernator Flanged Type		LMFP	Unius
		LMKP	Unius
		LMHP	Unius
Duplex Lata Position-Gubernator Flanged Type		LMFP…L	Duplex
		LMKP…L	Duplex
		LMHP…L	Duplex
Duplex-wide-Medium Flanged Type		LMFM…L	Duplex
		LMKM…L	Duplex
		LMHM…L	Duplex
Ferens flanged Stroke		LBHR LBHRW	Unius
		LBHS LBHSW	Unius
		LBHC LBHCW	Single

LMF(K)··· UU (Resin clientulus)

Hoc genus est series dimensionis metrica late in Asia aliisque regionibus adhibita.

Omnia exempla cum nickle patella secundum exigentias clientium fieri possunt, cum functione rubiginis-probationis.


LMF··· UU	LMK··· UU

Nominal hastile diametro mm	Resina teneretur				Maioribus dimensionibus et tolerantia
	LMF··· UU	Pondus (g)	LMK …UU	Pondus (g)	dr****		D		L
	LMF··· UU	Pondus (g)	LMK …UU	Pondus (g)	mm	Tolerantia μm	mm	Tolerantia μm	mm	Tolerantia μm
5	LMF5UU	18	LMK5UU	13	5	0 -9	10	0 -11	15	±300
6	LMF6UU	24	LMK6UU	18	6		12		19
8	LMF8SUU	32	LMK8SUU	24	8		15		17
8	LMF8UU	37	LMK8UU	29	8		15		24
10	LMF10UU	72	LMK10UU	52	10		19	0 -13	29
12	LMF12UU	76	LMK12UU	57	12		21		30	0 -200
13	LMF13UU	88	LMK13UU	72	13		23		32
16	LMF16UU	120	LMK16UU	104	16		28		37
20	LMF20UU	180	LMK20UU	145	20	0 -10	32	0 -16	42
25	LMF25UU	340	LMK25UU	300	25		40		59	0 -300
30	LMF30UU	470	LMK30UU	375	30		45		64
35	LMF35UU	650	LMK35UU	560	35	0 -12	52	0 -19	70
40	LMF40UU	1,060	LMK40UU	880	40		60		80
50	LMF50UU	2,200	LMK50UU	2,000	50		80		100
60	LMF60UU	3,000	LMK60UU	2,560	60	0 -15	90	0 -22	110
80	LMF80UU	5,800	LMK80UU	5,300	80	0 -15	120	0 -22	140	0 -400
100	LMF100UU	10,600	LMK100UU	9,900	100	0 -20	150	0 -25	175	0 -400

Maioribus dimensionibus et tolerantia							Eccentricitas μm	quadratum μm	Basic onus rating
Flange									Basic onus rating
Df**** mm	k mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
26	21	5	18	3.5	6	3.1	12	12	167	206
28	22	5	20	3.5	6	3.1			206	265
32	25	5	24	3.5	6	3.1			176	216
32	25	5	24	3.5	6	3.1			274	392
40	30	6	29	4.5	7.5	4.1			372	549
42	32	6	32	4.5	7.5	4.1			510	784
43	34	6	33	4.5	7.5	4.1			510	784
48	37	6	38	4.5	7.5	4.1			774	1,180
54	42	8	43	5.5	9	5.1	15	15	882	1,370
62	50	8	51	5.5	9	5.1			980	1,570
74	58	10	60	6.6	11	6.1			1,570	2,740
82	64	10	67	6.6	11	6.1	20	20	1,670	3,140
96	75	13	78	9	14	8.1			2,160	4,020
116	92	13	98	9	14	8.1			3,820	7,940
134	106	18	112	11	17	11.1	25	25	4,700	10000
164	136	18	142	11	17	11.1	25	25	7,350	16,000
200	170	20	175	14	20	13.1	30	30	14,100	34,800

LMF(K)···GA

Hoc genus est series dimensionis metrica late in Asia aliisque regionibus adhibita.

Omnia exempla fieri possunt cum nickle patella secundum exigentias clientium, cum functione rubiginis.


LMF··· GA		LMK··· GA

Nominal hastile diametri mm	Resina teneretur				Maioribus dimensionibus et tolerantia
	LMF··· GA	Pondus (g)	LMK··· GA	Pondus (g)	dr		D		L
	LMF··· GA	Pondus (g)	LMK··· GA	Pondus (g)	mm	Tolerantia μm	mm	Tolerantia μm	mm	Tolerantia μm
5	LMF5GA	19.5	LMK5GA	14.5	5	0 -9	10	0 -11	15	± 300
6	LMF6GA	25.3	LMK6GA	19.3	6		12		19
8	LMF8GA	39.3	LMK8GA	31.3	8		15		24
10	LMF10GA	74.5	LMK10GA	54.5	10		19	0 -13	29
12	LMF12GA	81.2	LMK12GA	62.2	12		21		30	0 -200
13	LMF13GA	95	LMK13GA	79	13		23		32
16	LMF16GA	137	LMK16GA	121	16		28		37
20	LMF20GA	205	LMK20GA	170	20	0 -10	32	0 -16	42
25	LMF25GA	402	LMK25GA	362	25		40		59	0 -300
30	LMF30GA	546	LMK30GA	451	30		45		64
35	LMF35GA	749	LMK35GA	659	35	0 -12	52	0 -19	70
40	LMF40GA	1,205	LMK40GA	1,025	40		60		80
50	LMF50GA	2,200	LMK50GA	2,000	50		80		100	0 -400
60	LMF60GA	3,000	LMK60GA	2,560	60	0 -15	90	0 -22	110
80	LMF80GA	5,800	LMK80GA	5,300	80	0 -15	120	0 -22	140
100	LMF100GA	10,600	LMK100GA	9,900	100	0 -20	150	0 -25	175

Maioribus dimensionibus et tolerantia							μm	quadratum μm	Basic onus rating
Flange									Basic onus rating
Df mm	K mm	t mm	Dp mm	X mm	Y mm	Z mm			Dynamic C N	Static Co N
26	21	5	17	3.5	6	3.1	12	12	167	206
28	22	5	20	3.5	6	3.1			206	265
32	25	5	24	3.5	6	3.1			274	392
40	30	6	29	4.5	7.5	4.1			372	549
42	32	6	32	4.5	7.5	4.1			510	784
43	34	6	33	4.5	7.5	4.1			510	784
48	37	6	38	4.5	7.5	4.1			774	1.180
54	42	8	43	5.5	9	5.1	15	15	882	1,370
62	50	8	51	5.5	9	5.1			980	1,570
74	58	10	60	6.6	11	6.1			1,570	2,740
82	64	10	67	6.6	11	6.1	20	20	1,670	3,140
96	75	13	78	9	14	8.1			2,160	4,020
116	92	13	98	9	14	8.1			3,820	7,940
134	106	18	112	11	17	11.1	25	25	4,700	10,000
164	136	18	142	11	17	11.1	25	25	7,350	16,000
200	170	20	175	14	20	13.1	30	30	14,100	34,800

LMH··· UU (Resin clientulus)

Hoc genus est series dimensionis metrica late in Asia aliisque regionibus adhibita.

Omnia exempla fieri possunt cum nickle patella secundum exigentias clientium, cum functione rubiginis.

Nominal hastile diametri mm	LMH··· UU	Pondus (g)	Maioribus dimensionibus et tolerantia
			dr		D		L
			mm	Tolerantia μm	mm	Tolerantia μm	mm	Tolerantia μm
5	LMH5UU	15	5	0 -9	10	0 -11	15	±300
6	LMH6UU	21	6		12		19
8	LMH8UU	33	8		15		24
10	LMH10UU	64	10		19	0 -13	29
12	LMH12UU	68	12		21		30
13	LMH13UU	81	13		23		32	0 -200
16	LMH16UU	112	16		28		37
20	LMH20UU	167	20	0 -10	32	0 -16	42
25	LMH25UU	325	25		40		59	0 -300
30	LMH30UU	388	30		45		64
35	LMH35UU	580	35	0 -12	52	0 -19	70
40	LMH40UU	920	40	0 -12	60	0 -19	80
50	LMH50UU	2,000	50		80		100
60	LMH60UU	2,560	60		90		110

Maioribus dimensionibus et tolerantia								μm	quadratum μm	Basic onus rating
Flange										Basic onus rating
Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			Dynamic C N	Static Con
26	16	5	17	-	3.5	6	3.1	12	12	167	206
28	18	5	20	-	3.5	6	3.1			206	265
32	21	5	24	一	3.5	6	3.1			274	392
40	25	6	29	-	4.5	7.5	4.1			372	549
42	27	6	32	-	4.5	7.5	4.1			510	784
43	29	6	33	-	4.5	7.5	4.1			510	784
48	34	6	31	22	4.5	7.5	4.1			774	1,180
54	38	8	36	24	5.5	9	5.1	15	15	882	1,370
62	46	8	40	32	5.5	9	5.1			980	1,570
74	51	10	49	35	6.6	11	6.1			1,570	2,740
82	58	10	55	38	6.6	11	6.1	20	20	1.670	3,140
96	66	13	64	45	9	14	8.1	20	20	2,160	4,020
116	86	13	80	56	9	14	8.1			3,820	7,920
134	96	18	84	74	11	17	11.1			4.700	10,000

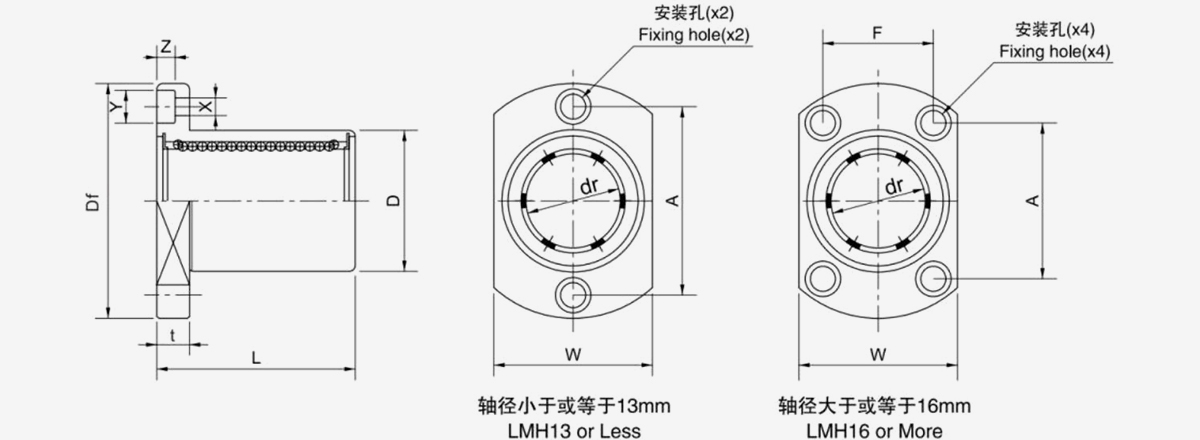

LMH…GA (Retainer summus temperatus resistens)

Hoc genus est series dimensionis metrica late in Asia aliisque regionibus adhibita.

Omnia exempla fieri possunt cum nickle patella secundum exigentias clientium, cum functione rubiginis.


LMH··· GA

Nominal hastile diametri mm	LMH··· GA	Pondus (g)	Maioribus dimensionibus et tolerantia
			dr		D		L
			mm	Tolerantia μm	mm	Tolerantia μm	mm	Tolerantia μm
5	LMH5GA	16.5	5	0 -9	10	0 -11	15	±300
6	LMH6GA	22.3	6		12		19
8	LMH8GA	35.3	8		15		24
10	LMH10GA	65.5	10		19	0 -13	29
12	LMH12GA	73.2	12		21		30	0 -200
13	LMH13GA	88	13		23		32
16	LMH16GA	129	16		28		37
20	LMH20GA	192	20	0 -10	32	0 -16	42
25	LMH25GA	387	25		40		59	0 -300
30	LMH30GA	464	30		45		64
35	LMH35GA	679	35	0 -12	52	0 -19	70
40	LMH40GA	1,065	40	0 -12	60	0 -19	80
50	LMH50GA	2,000	50		80		100
60	LMH60GA	2,560	60		90		110

Maioribus dimensionibus et tolerantia								μm	quadratum μm	Basic onus rating
Flange										Basic onus rating
Df mm	W mm	t mm	A mm	F mm	X mm	Y mm	Z mm			Dynamic CN	Static Con
26	16	5	17	-	3.5	6	3.1	12	12	167	206
28	18	5	20	-	3.5	6	3.1			206	265
32	21	5	24	-	3.5	6	3.1			274	392
40	25	6	29	-	4.5	7.5	4.1			372	549
42	27	6	32	-	4.5	7.5	4.1			510	784
43	29	6	33	-	4.5	7.5	4.1			510	784
48	34	6	31	22	4.5	7.5	4.1			774	1,180
54	38	8	36	24	5.5	9	5.1	15	15	882	1,370
62	46	8	40	32	5.5	9	5.1			980	1,570
74	51	10	49	35	6.6	11	6.1			1,570	2,740
82	58	10	55	38	6.6	11	6.1	20	20	1,670	3,140
96	66	13	64	45	9	14	8.1	20	20	2,160	4,020
116	86	13	80	56	9	14	8.1			3,820	7,940
134	96	18	84	74	11	17	11.1			4,700	10,000

Materia Compositio et Proprietates
Materia	CuZn25Al5Mn3Fe3	CuSn5Pb5Zn5	CuAl10Ni5Fe5	CuSn12	CuZn25Al5Mn4Fe3
Densitas	8.0	8.9	7.8	8.9	8.0
duritia HB	>210	>70	>150	>95	>250
Distrahens fortitudo N/mm²	>750	>200	>600	>260	>800
Cede fortitudo N / mm²	>450	>90	>260	>150	>450
Prolongatio%	>12	>15	>10	>	>800
Coefficien Expansionis Lineae 10 ^-5 /	1.9	1.8	1.6	1.8	1.9
Terminus Temp	-40~ 300	-40~ 400	-40~ 400	-40~ 400	-40~ 150
Maximilianus. Onus N/mm²	100	60	50	70	120
Maximilianus. Celeritas (Arida) m/min	15	10	20	10	15
Max.PV N/mm²*m/min	200	60	60	80	200
Compressione permanentis Deformationis 300N/mm²	<0.01	<0.05	<0.04	<0.05	<0.05
*Magna postulatio cum materia speciali praesto est.

Basis Material Interchange
Materia Codes	Sina Brands GB1176-87	Intenational ISO 1338	Germania DIN	Iaponia JIS	America ASTM(UNS)	Angliae BS	Italia JM	Condiciones Lorem
JDB Casted Bronze	ZCuZn25AI5 Fe3Mn3	GCuZn25AI6 Fe3Mn3	DIN1709 G-CuZn25AI5	H5102 CAC304	B30-92 C86300	HTB2	JM18-1	Summus onus, humilis celeritate usus est
JDB-1Bronze	ZCuSn5 Pb5Zn5	GCuPb5 Sn5Zn5	DIN1705 G-CuSn5ZnPb	H511 BC6	B30-92 C83600	LG2	JM7-15	Medium pondus, humilis celeritate Communiter usus est
JDB-2Bronze	ZCuAI9Fe4 Ni4Mn2	GCuAI10 FeNiS	DIN17656 G-CuAI10Ni	H5114 AIBC3	B30-92 C95500	AB2	JM3-15	Proin onus, media velocitas, Communiter usus est
JDB-3Bronze	ZCuSn12		G-CuSn12	CAC503B	B30-92 C90800	PB2	JM1-15	Medium onus, humilis celeritate, Communiter
JDB-5	ZCuZn25AI6 Fe3Mn3	GCuZn25AI6 Fe3Mn3	DIN1709 G-CuZn25AI5	H5102 CAC304	B30-92 C86300	HTB2	JM18-1	Plus onus altum, humilis celeritas, Maximum onus adhibitum

solidus ducatus
Ducatus	Features	Typicam applicationem
SL1 Graphite add	Praeclara resistentia contra chemica impetus et humilis friction, Temp modus 400℃	Causa communis machinis ac sub atmosphaera
SL4 PTFE addendi	Lowest in friction and good of water Lubrication, Temp limit 300℃	Navis, hydraulica turbine, gas turbine, etc
